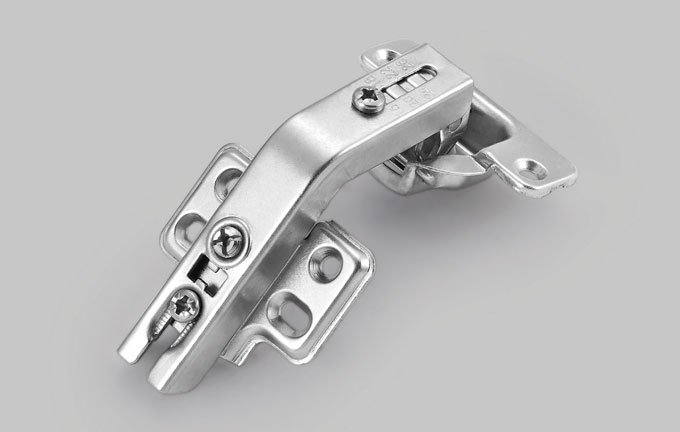

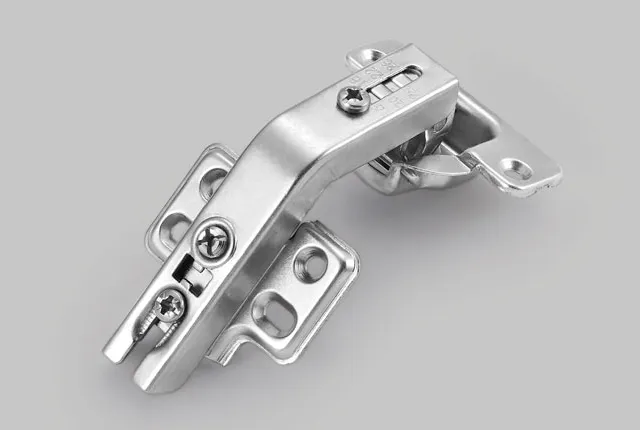

| Item number | MK-HD-01-135D |

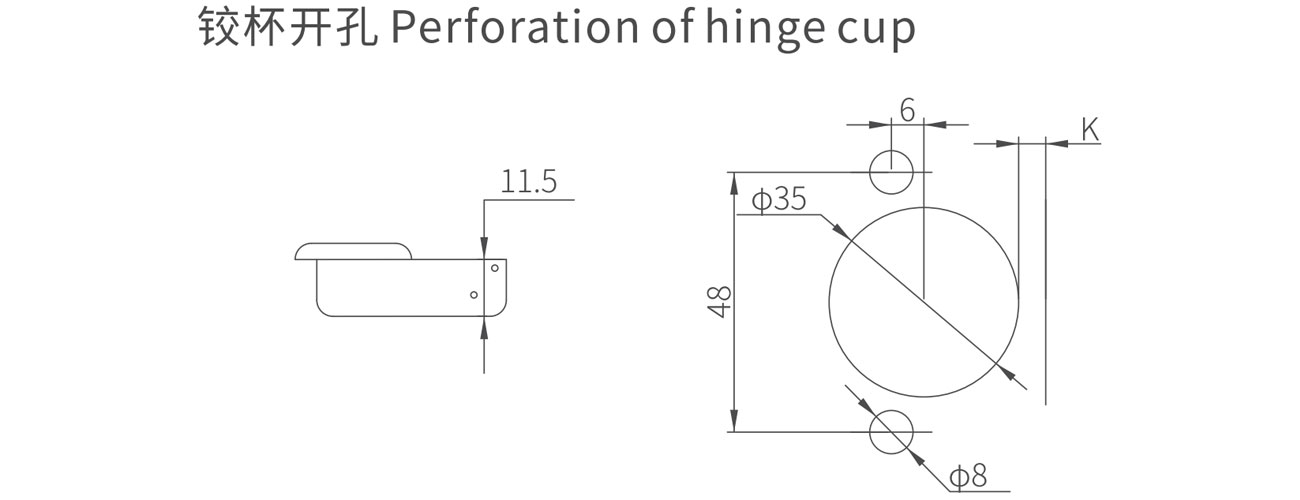

| Depth of hinge cup | 11.5mm |
| Diameter of hinge cup | 35mm |
| Drilling distance on door(K) | 3-7mm |
| Range of door thickness | 15-26mm |
| Main material | Cold rolled steel |
| Finish | Nickel plating |

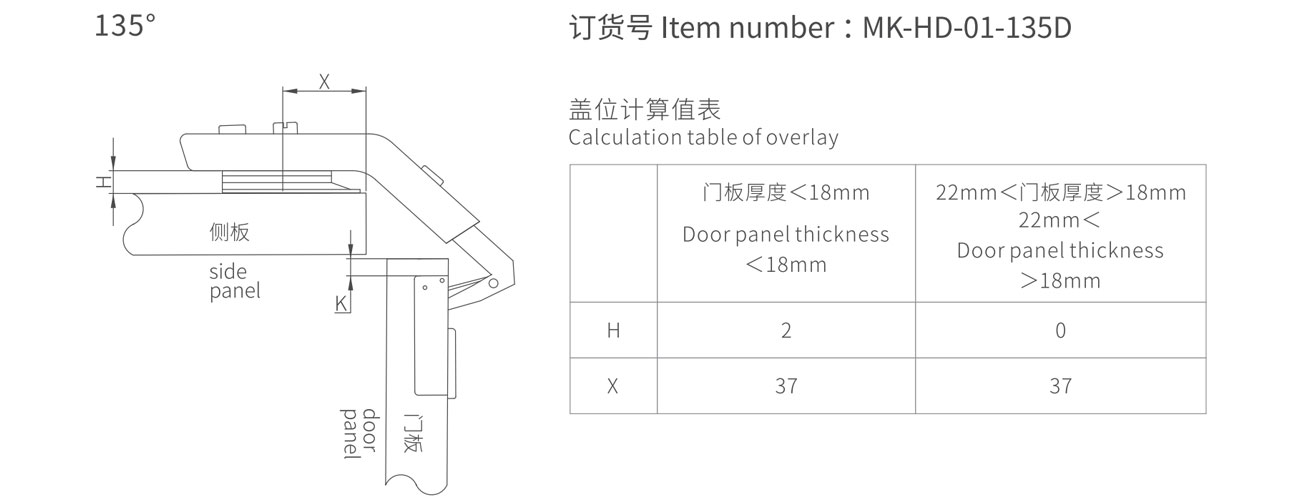

H=Height of mounting plate
K=Distance between outside edge on door panel and drilling holes of hinge cup
X=Install hole distance of the mounting plate
