Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG

Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG

MEIKI Cabinet Hanger provides a strong and reliable wall mounting solution for kitchen cabinets and furniture systems. Designed with high load capacity, easy adjustment and secure installation, it ensures stable cabinet hanging performance for modern kitchen applications.
Request A Free Quote

Datasheet of Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG

Item numberMK-KY-TDJ2.0-25KG
Opening Angle105°
Max Load25KG
Max Size of the doorHeight 2700mm, Width 600 mm
Main materialCold rolled steel
FinishGun Black, Nickel plating

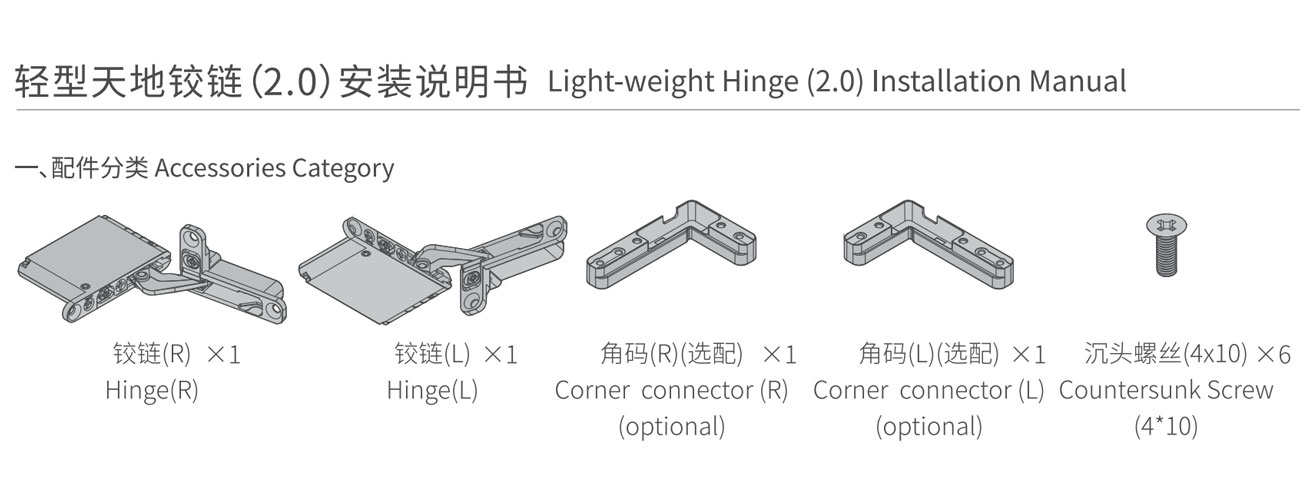

Accessories

Hinge R, hinge L, Bracket R(option), Bracket L(option)

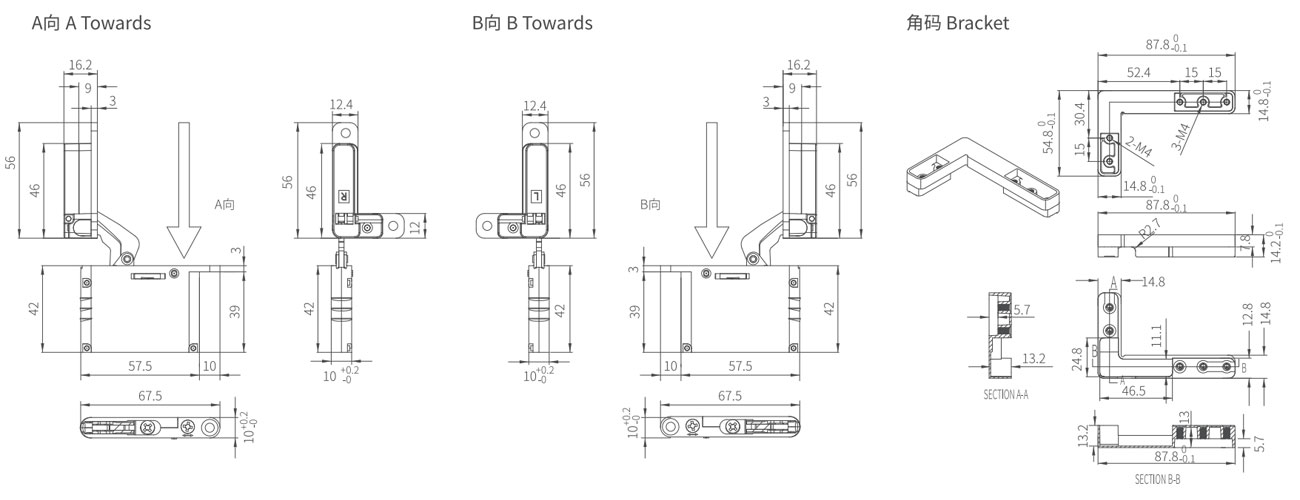

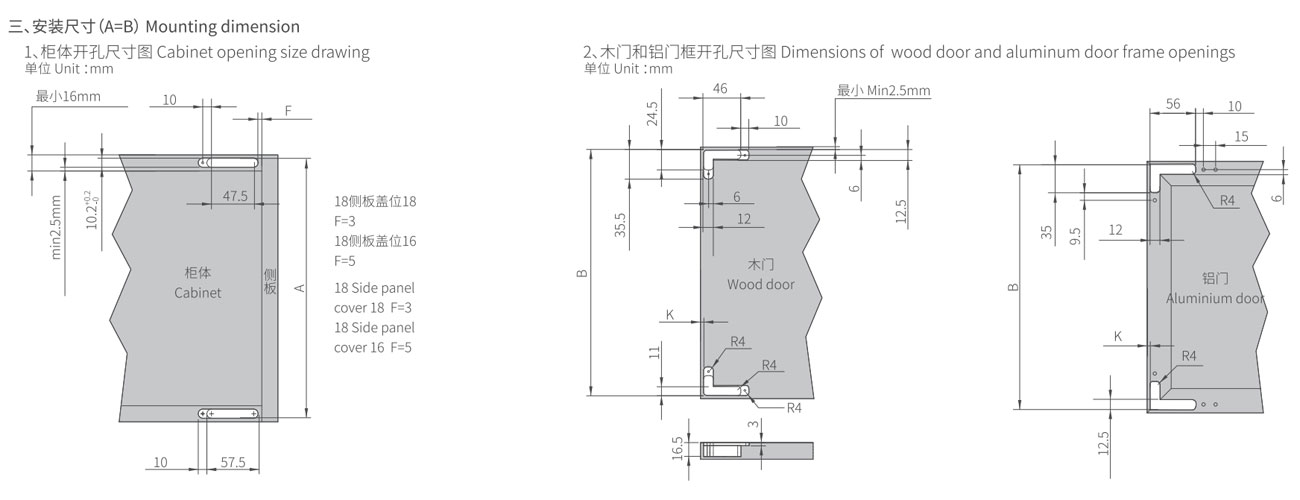

Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG Part Drawing

Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG
