HD In-line Hinge (Half Overlay) MK-HD-BG-YZJ
HD In-line Hinge (Half Overlay) MK-HD-BG-YZJ

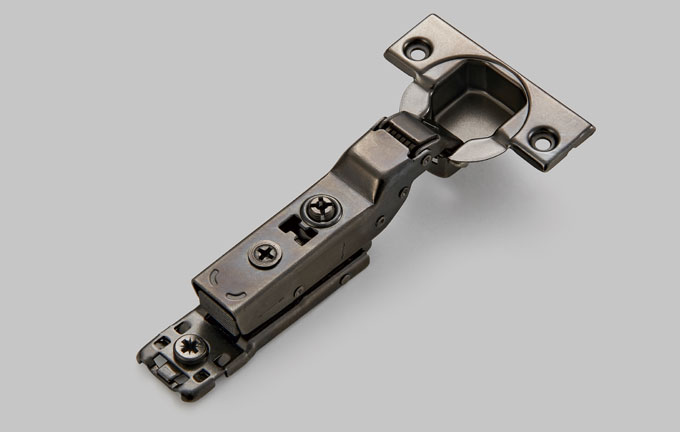

hd in line hinge mk hd bg yzj manufacturers

HD In-line Hinge (Half Overlay) MK-HD-BG-YZJ

MEIKI Cabinet Hanger provides a strong and reliable wall mounting solution for kitchen cabinets and furniture systems. Designed with high load capacity, easy adjustment and secure installation, it ensures stable cabinet hanging performance for modern kitchen applications.
Request A Free Quote

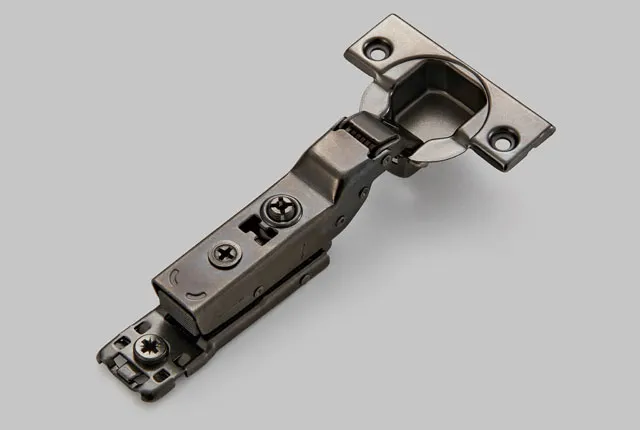

Key Benefits of HD In-line Hinge (Half Overlay) MK-HD-BG-YZJ

Key Benefits of HD In-line Hinge (Half Overlay) MK-HD-BG-YZJ

  • Strong Load Capacity: Designed with reinforced structure to provide stable support for heavy wall-mounted cabinets.
  • Easy Adjustment: Allows convenient horizontal and vertical adjustment for precise cabinet installation.
  • Secure Installation: Provides reliable connection between cabinets and wall mounting systems.
  • Wide Application: Suitable for kitchen cabinets, wardrobes, storage units and customized furniture projects.

Datasheet of HD In-line Hinge MK-HD-BG-YZJ

Item numberMK-HD-BG-YZJ
Opening Angle110°
Depth of hinge cup11.3mm
Diameter of hinge cup35mm
Drilling distance on door(K)3-7mm
Main materialCold rolled steel
Optional thickness of door plate14-23mm
Finish

Nickel plating, Gun black

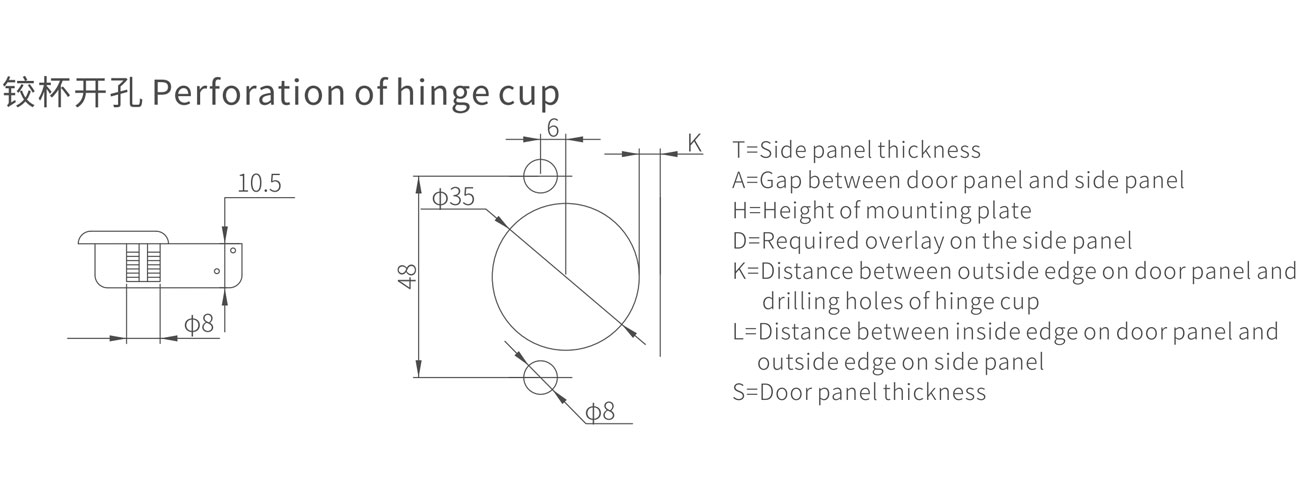

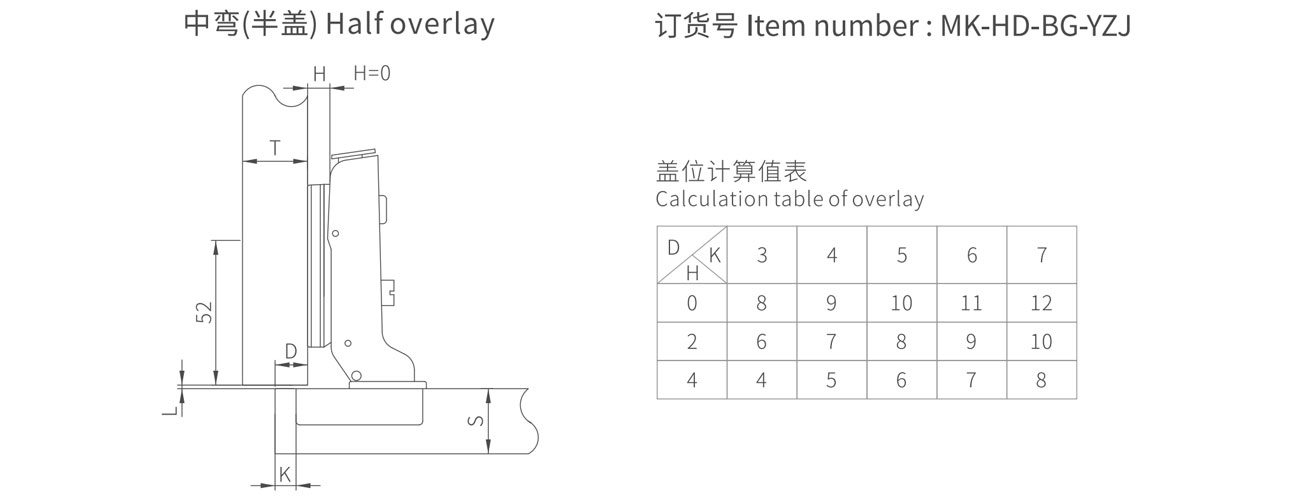

HD In-line Hinge MK-HD-BG-YZJ Part Drawing

HD In-line Hinge MK-HD-BG-YZJ
HD In-line Hinge MK-HD-BG-YZJ
