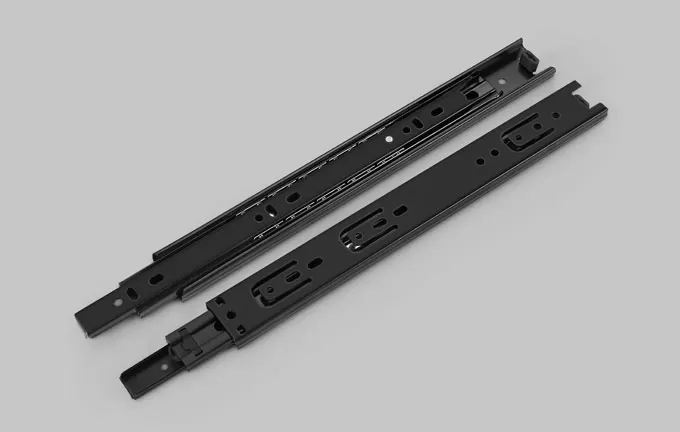

| Full extension clip on 3 segments ball | |
| Slide width | 34.5mm |
| Loading capacity | 25kg |
| Material | Cold rolled steel |
| Finish | Electrophoresis/electrolysis |

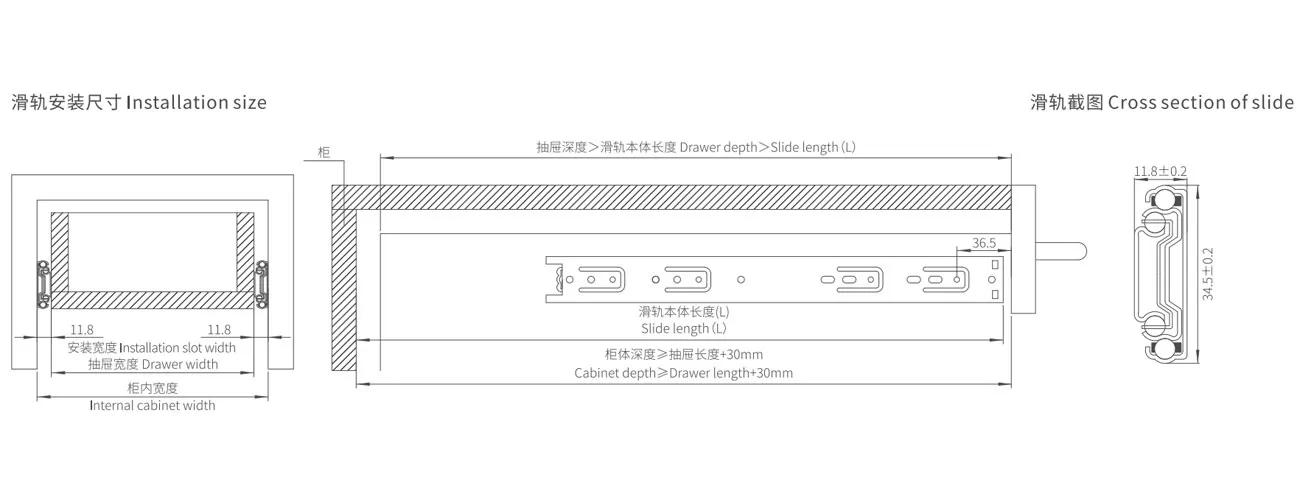

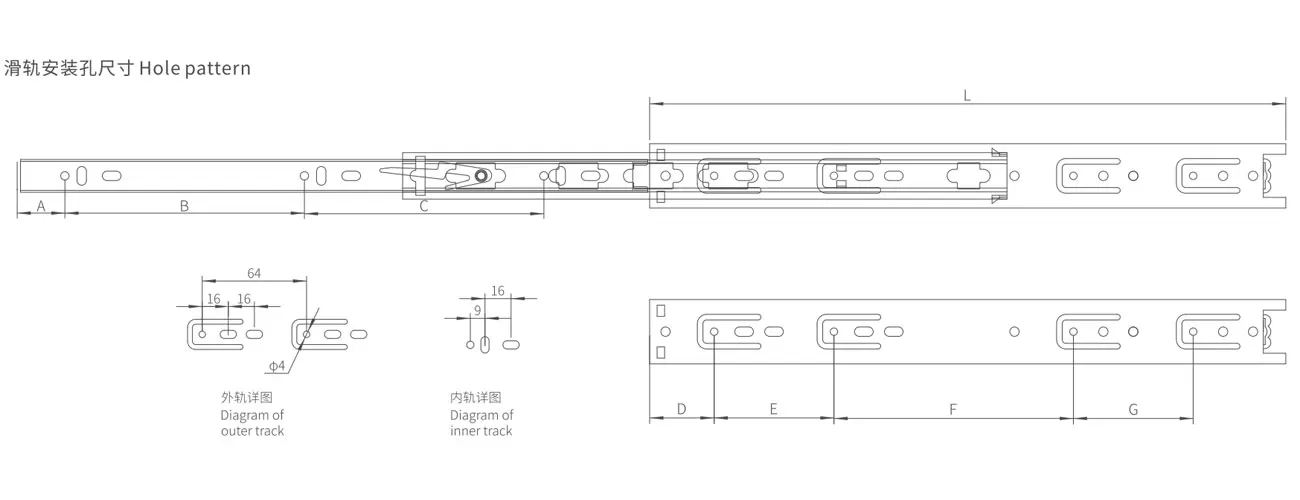

| Product Type | Length(mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) |
| MK-XL1035225 | 225 | 25.5 | 153 | / | 34.5 | 64 | 64 | / | 225 |
| MK-XL1035240 | 240 | 25.5 | 84 | 84 | 34.5 | 64 | 84 | / | 240 |
| MK-XL1035290 | 290 | 25.5 | 96 | 112 | 34.5 | 64 | 128 | / | 290 |
| MK-XL1035340 | 340 | 25.5 | 128 | 128 | 34.5 | 64 | 128 | 64 | 340 |
| MK-XL1035390 | 390 | 25.5 | 128 | 160 | 34.5 | 64 | 160 | 64 | 390 |
| MK-XL1035440 | 440 | 25.5 | 160 | 192 | 34.5 | 64 | 224 | 64 | 440 |
| MK-XL1035490 | 490 | 25.5 | 160 | 256 | 34.5 | 64 | 256 | 64 | 490 |
