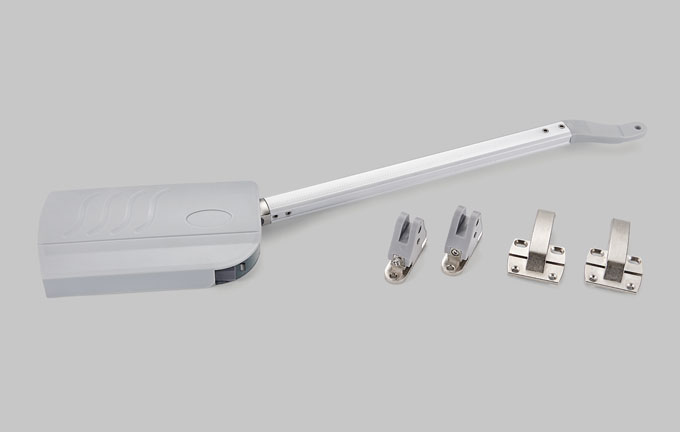

When opened, the two panels of the upward-folding door fold in the center. The upward folding door support is suitable for high ceiling cabinets with two large hinged panels and ensures that the handles can be easily reached in any position and can also be used for panels of different heights.
Gently closing thanks to damping.
Easy to open, infinitely variable rest stops for easy access to contents.
Wide range of applications, easy to install, easy to adjust.
Stability, even with wide fronts. Excellent durability.
Door handle can be installed in ideal position.
No protruding parts.
| Item number | MK-HL-G125 |
| Material | Zinc alloy+Plastic+Iron |
| Finish | Nickel plating, Chrome plating |
| Capacity range | Different options |
| Cabinet height | 600-1000mm |
| Cabinet width | ≤1200mm |
Usage Suggestion
| Model | Cabinet Height | Cabinet width | Alu.bar Length | Hinge | Fronts Weight | Product OTY |
| MK-HL-G125-A | 550-650mm | 600-700mm | 200mm | 2 PCS | 4.1-5.0kg | 1 set |
| MK-HL-G125-B | 550-650mm | 600-850mm | 200mm | 2 PCS | 5.1-6.0kg | 1 set |
| MK-HL-G125-C | 700-850mm | 600-850mm | 300mm | 2 PCS | 6.1-7.0kg | 1 set |
| MK-HL-G125-D | 700-850mm | 600-850mm | 300mm | 2 PCS | 7.1-8.0kg | 1 set |
| MK-HL-G125-E | 700-850mm | 600-850mm | 300mm | 2 PCS | 8.1-9.0kg | 1 set |
| MK-HL-G125-F | 900-950mm | 900-1000mm | 350mm | 3 PCS | 9.1-10.0kg | 1 set |
Note: Can make customized products to match with the cabinet size and front weight.
Total door height 600mm, alu. bar uses 200mm.
Total door height 650-850mm, alu. bar uses 300mm.
Total door height more than 900mm alu. bar uses 350mm.
If door width more than 900mm or panel weight more than 9kg, use 3 hinges.
