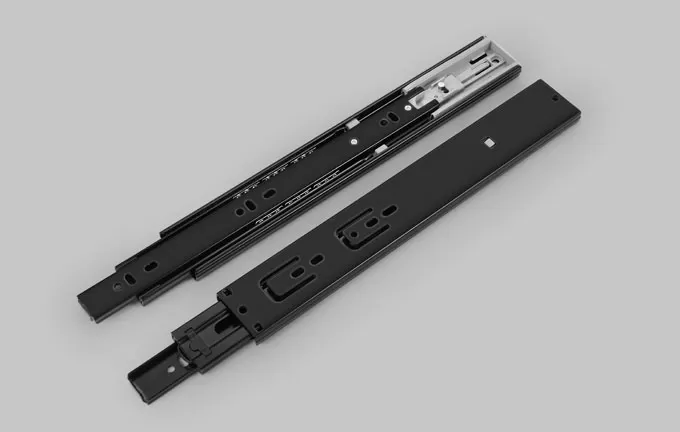

| Full extension clip on damperthree-segment ball bearing slide | |

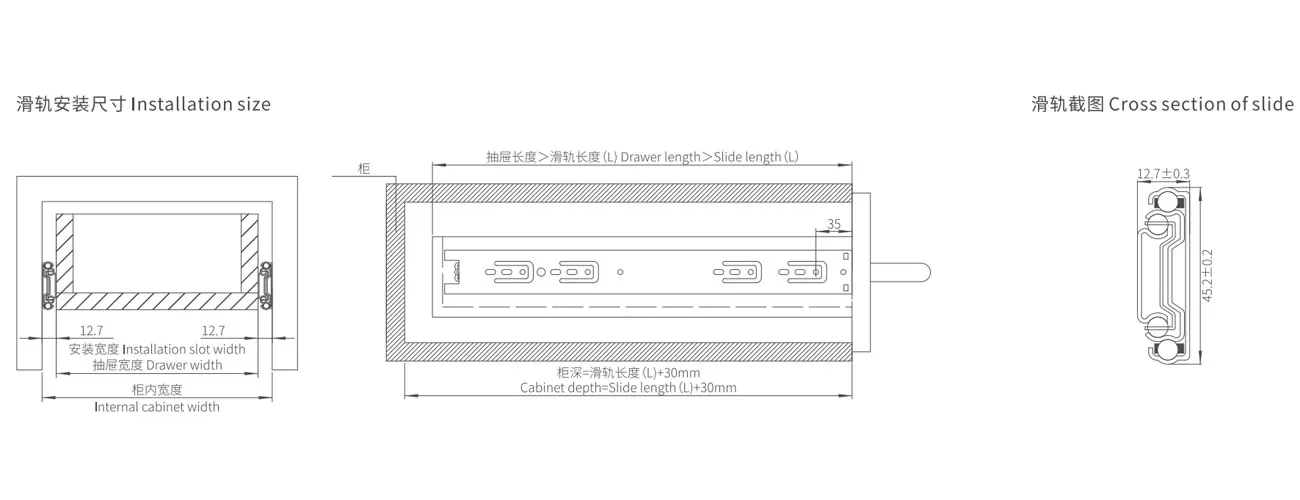

| Slide width | 45.2mm |
| Loading capacity | 30kg |
| Material | Cold rolled steel |
| Finish | Electrophoresis/electrolysis |

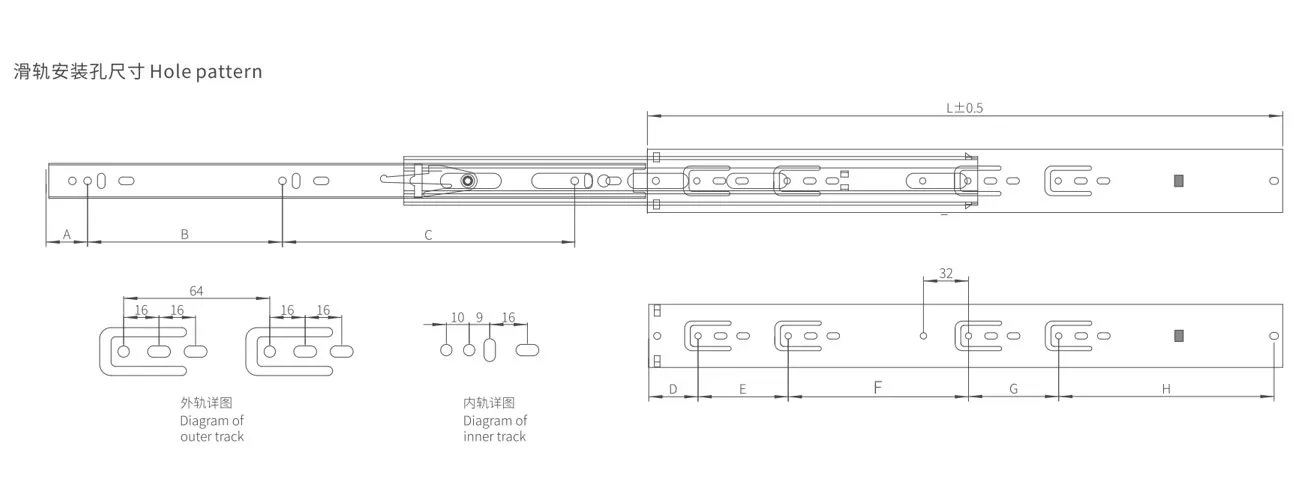

| Product Type | Length(mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) |
| MK-RXZN4510250 | 250 | 26 | 160 | / | 35 | 64 | / | / | 145 | 250 |
| MK-RXZN4510300 | 300 | 26 | 96 | 128 | 35 | 64 | / | / | 195 | 300 |
| MK-RXZN4510350 | 350 | 26 | 128 | 128 | 35 | 64 | 96 | / | 149 | 350 |
| MK-RXZN4510400 | 400 | 26 | 160 | 160 | 35 | 64 | 96 | 64 | 135 | 400 |
| MK-RXZN4510450 | 450 | 26 | 160 | 192 | 35 | 64 | 128 | 64 | 153 | 450 |
| MK-RXZN4510500 | 500 | 26 | 192 | 224 | 35 | 64 | 160 | 64 | 171 | 500 |
Choose our tailored Furniture Hardware & Fitting Solutions to upgrade every corner of your space efficiently and perfectly.
