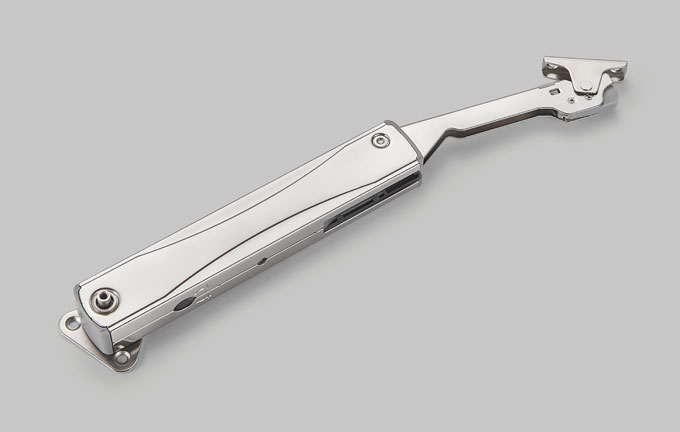

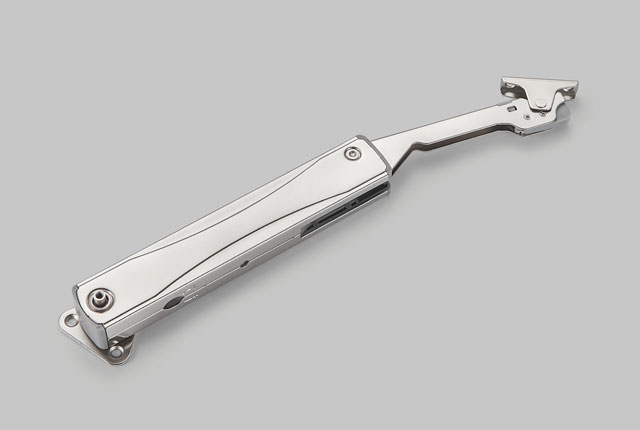

Free stop at any position in opening angle about 30°.
Door can soft close if used with soft hinges.
Force can be adjusted by turning the inside screw.
| Item number | MK-HL-G327 |
| Material | Iron+Plastic |
| Finish | Nickel plating, Black |
| Available | Up-turning wooden door and aluminum-frame door |
Usage Suggestion
| Model | Cabinet Height (mm) | Product OTY | Open Angle |
| MK-HL-G327-L-520-920 | 240-400mm | 1 PCS | 100° |
| MK-HL-G327-M-1200-1750 | 300-400mm | 1 PCS | 100° |
| MK-HL-G327-H-1500-2240 | 400-500mm | 1 PCS | 100° |
Cabinet height: 240-500mm
Front width: 500-1500mm
Cabinet depth should be 200mm at least.
The open angle of the door will be limited by the angle of used hinges.
