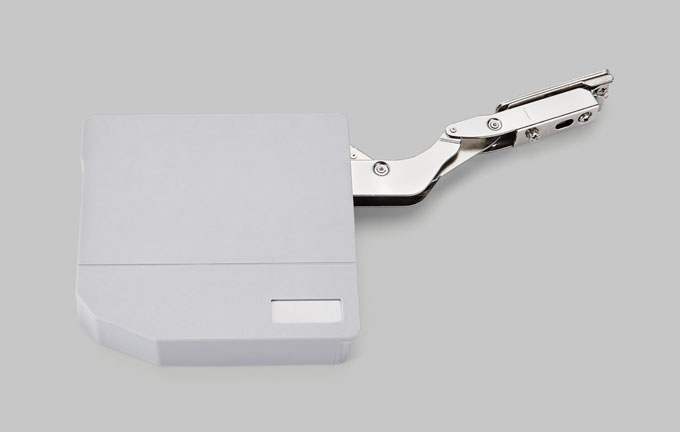

The lift system is suitable for wall cabinets and tall cabinets with low height.
With soft closing under angle 25°max opening angle is 110°.
No need hinges for cabinet.
Easy to open, free stop function.

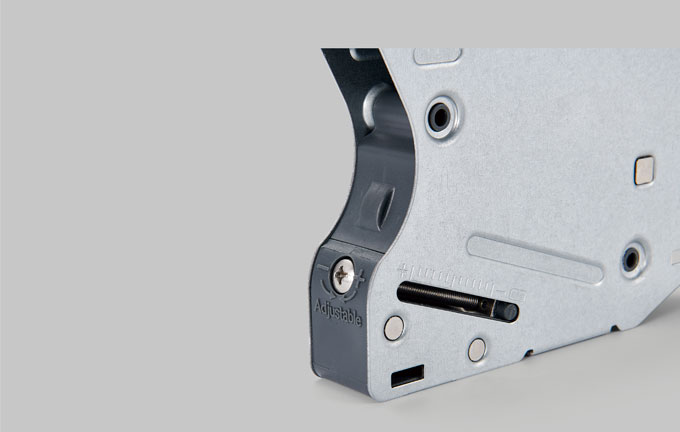

Force of opening or closing is adjustable.
Easy assembly and adjustment.
Different color options for decoration cover.
| Item number | MK-HL-G123 |
| Material | Iron+Plastic |
| Finish | Nickel plating |
| Available | Up-turning wooden door and aluminum-frame door |
Usage Suggestion
| Model | Cabinet Height (mm) |
| MK-HL-G123-L-1200-1800 | 330-450 |
| MK-HL-G123-M-1700-2250 | 360-500 |
| MK-HL-G123-H-2100-3100 | 400-500 |
| MK-HL-G123-HD-2500-4000 | 400-500 |
| Cabinet Helght | 330-500mm |
| Cabinet Widthe | 600-1200mm |
| Front Thickness | 16、18、22、26、28mm |
