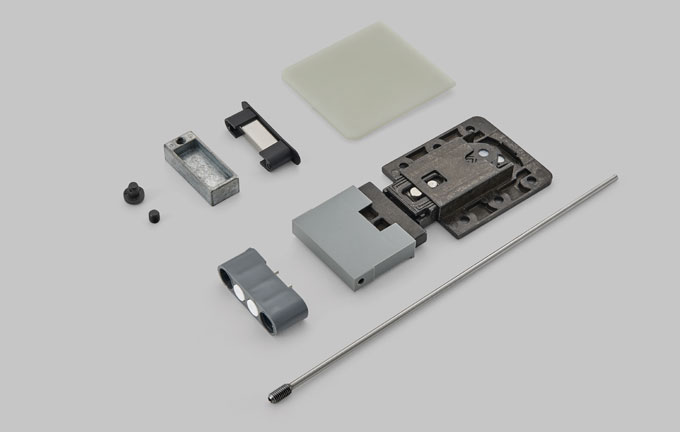

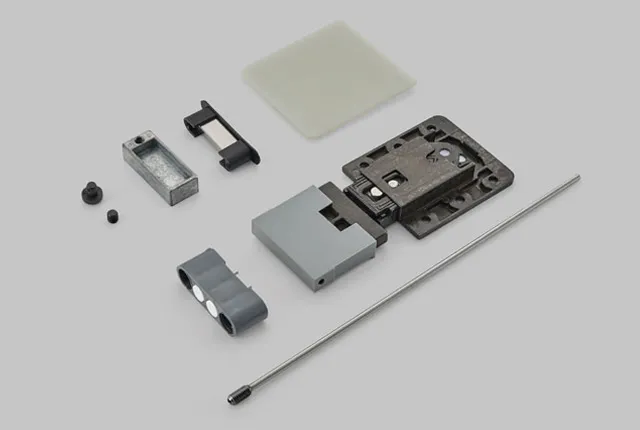

Name: Full Overlay 180° Single Axis Needle Hinge 2.0 MK-KY-ZS2.0-180D
Brand: Sichuan Huaguang Intelligent Hardware Technology Co., Ltd.
Availability: InStock

Zinc Alloy Glass Clips Plastic Glass Clips

Invisible Cabinet Hanger-01 MK-WH-01 Invisible Cabinet Hanger-02 MK-WH-02 YFS Cabinet Hanger-03 MK-YFS-003 Light Type Invisible Hanger MK-GM-ATC301.12.55 Cabinet Hanger SP1 Cabinet Hanger SP2 Cabinet Hanger SP3 Cabinet Hanger SP4 Cabinet Hanger HP3 Cabinet Hanger MP1 Cabinet Hanger MP2 Cabinet Hanger MP3 Cabinet Hanger MP4 Wall Plate SP-T1 Wall Plate SP-T2 Wall Plate SP-T3 Wall Plate SP-T4 Wall Plate SP-T5 Wall Plate MP1-T1 Wall Plate MP2-T1 Wall Plate SP-TC Decorative Cover GZ18 Decorative Cover GZ25 Decorative Cover GP25B Decorative Cover GP18Z Decorative Cover GP25H Decorative Cover GP25L Decorative Cover GP12B Hidden Hanging Code (Left and Right) AC01 Hidden Hanging Code AC02 Hidden Hanging Code ACO3 Cabinet Middle Hook Hanger AC04 Cabinet Hanger AC05 Cabinet Hanger AC06 Alloy Suspension Code AC07 Cabinet Hanger AC08 Cabinet Hanger AC09 Cabinet Hanger AC10 Adjustment Pin AC-11 Adjustment Pin AC-12 Adjustment Pin AC-13 Adjustment Pin AC-14 Adjustment Pin AC-15 Adjustment Pin AC-16 Cabinet Hanger F-15 Cabinet Hanger Cover TS-1 Cabinet Hanger F01 Cabinet Hanger F02 Cabinet Hanger F03 Cabinet Hanger F04 Alloy Cabinet Hanger F05 Heavy-duty Cabinet Hanger F06 Cabinet Hanger F07 Cabinet Hanger F08 Cabinet Hanger F09 Heavy-duty Floor Cabinet Hanger ED01 Heavy-duty Floor Cabinet Hanger ED02 Hidden Cabinet Hanger EF01 Hidden Cabinet Hanger EF02 Hidden Cabinet Hanger EE01 Hidden Cabinet Hanger EE02 Hidden Cabinet Hanger EE03 Drill-free Hidden Cabinet Hanger EE04 Cabinet Hanger F-12 Cabinet Hanger F-13 Cabinet Hanger F-14 Cabinet Hanger F-16 Cabinet Hanger F-17 Cabinet Hanger F-18 Cabinet Hanger G04 Cabinet Hanger G05 Cabinet Hanger G06 Adjustment Pin HF-1 Adjustment Pin HF-2 Adjustment Pin HF-3 Adjustment Pin HF-4 Adjustment Pin HF-5 Adjustment Pin HF-6 Adjustment Pin HF-7 Adjustment Pin HF-8 Adjustment Pin HF-9 Adjustment Pin HF-10 Adjustment Pin HF-11

Sofa Leg Adjustable Leg Silver Ventilation Mesh (Spray-Painted Finish)

Zinc Alloy Shelf Support Plastic Shelf Support Wall Mounted Shelf Support Transparent Shelf Support MK-TMBT-31-01-28 Snap-on Shelf Support MK-KGCBT-32-02-06

Eccentric Cam Connecting Bolt Strong Connector Series Sockets Shelf Support Screw Bolt and Decorative Screw Decorative Cover of Eccentric Cam

Zinc Alloy Wardrobe Tube Support Zinc Alloy + ABS Wardrobe Tube Support Aluminium Alloy Wardrobe Tube Support Aluminium Alloy + ABS Wardrobe Tube Support

Palletized Push Open System Magnetic Push Open System Gluey Push Open System Push Open System MK-QF-2328 (Grey) Push Open System MK-QF-2328 (Black) Push Open System MK-QF-804

Gas Support MK-WLS-3203 Gas Support MK-WLS-3202A Gas Support MK-WLS-3202C Gas Support MK-WLS-3205 Gas Support MK-WLS-3201B Gas Support MK-WLS-3206 Gas Support MK-WLS-3208 Upward Free Stop Lift System MK-KY-JJSF-300 Upward Free Stop Lift System MK-HL-G123 Upward Folding Door Lift System MK-HL-G125 Upward Free Stop Lift System MK-HL-G317 Upward Free Stop Lift System MK-HL-G327 Upward Free Stop Lift System MK-HL-G127 Soft Close Damping Gas Support MK-KR-A008 Lift Up Gas Support with Two Plastic Fixators MK-KR-A004 Aluminum-Frame Lift Up Gas Support MK-KR-B004 Lift Up Gas Support MK-KR-A001 Lift Up Gas Support MK-KR-A002

Zinc Alloy Adjustable Legs Plastic Adjustable Legs ABS Adjustable Legs Plastic + Carbon Steel Adjustable Legs Cold Rolled Steel + Carbon Steel Adjustable Legs Iron + Plastic Adjustable Legs

Ball Bearing Drawer Slides Concealed Drawer Slides Metalbox Runners Series

Standard Hinge Soft-Close Hinge Concealed/Hidden Hinges Light-weight Hinge (2.0) MK-KY-TDJ2.0-25KG Heavy-weght Hinge (2.0) MK-KY-TDJ2.0-30KG Full Overlay 180° Single Axis Needle Hinge 2.0 MK-KY-ZS2.0-180D 90° Folding Hinge MK-HC-HH-ZDJ180 170° Adjustable 135° Hinge MK-HH-E0H170 HD In-line Hinge (Full Overlay) MK-HD-QG-YZJ HD In-line Hinge (Half Overlay) MK-HD-BG-YZJ HD In-line Hinge (Insert) MK-HD-NQ-YZJ 135° Slide on Hinge MK-HD-01-135D 35 Flip Hinges MK-FBJ-62-54-51 Aluminum Profile Hinge MK-LF-01-QG-LK Aluminum Profile Hinge MK-LF-01-BG-LK Aluminum Profile Hinge MK-LF-01-NQ-LK HD 3D Hinge MK-HD-01-QG-SW HD 3D Hinge MK-HD-01-BG-SW HD 3D Hinge MK-HD-01-NQ-SW

Zinc Alloy Smart Lock MK-XBS-138-1 Zinc Alloy Smart Password Lock MK-XBS-103-1 Zinc Alloy Smart Password Lock MK-XBS-103-2 Zinc Alloy Smart Password Lock MK-XBS-103-3 Zinc Alloy Smart Password Lock MK-XBS-103-4 Zinc Alloy Password Lock(Black, Golden, Bronze, Gun-black) MK-XBS-103-40 Zinc Alloy Drawer Lock MK-CLW-138-22 Zinc Alloy Drawer Lock MK-MWD-138 Smart Password Lock MK-XBS-102A16-40 Three Linkage Lock MK-CLW-SLS

1# Plate Back Holder MK-BBK-31-01-27 1# Bracket MK-JM-31-01-18 38 Plastic Cap MK-JG-32-01-01 Half Moon Nut MK-YY-40-02-01 1 Inch Directional Wheel MK-DXL-1C 2 Inch Flat Plate Universal Wheel Wiht Brake MK-WXL-2C 1# Furniture Fixed Buckle MK-KK-63-57-38 2# Furniture Fixed Buckle MK-KK-40-05-03 Furniture Glide 16mm MK-KXJD-1.6 Transparent Rubber Pad MK-TMJD-16 Lint Pad MK-MZD-2.0 Wood Dowel With Vertical Stripe MK-MSZW Wood Dowel With Diagonal Stripe MK-MKXW Wood Dowel With Diagonal Stripe MK-MSXW Dining Table Bearing MK-XDL-ZC-10*46 Dining Table Bearing MK-XDL-ZC-10*39

8-inch Lazy Susan Turntable (Iron) MK-JD-TZP-8C 16-inch Lazy Susan Turntable (Aluminium) MK-RL-NZP-400C

Item number	MK-KY-ZS2.0-180D
Finish	Black( Custom Accepted)
Material	ZincAlloy, Stainless steel axis
Max Load	50KG/pc
Max Size of Door	Height: 2900mm, Width: 600mm, Thickness: 350mm
Open Angle	180°-270°

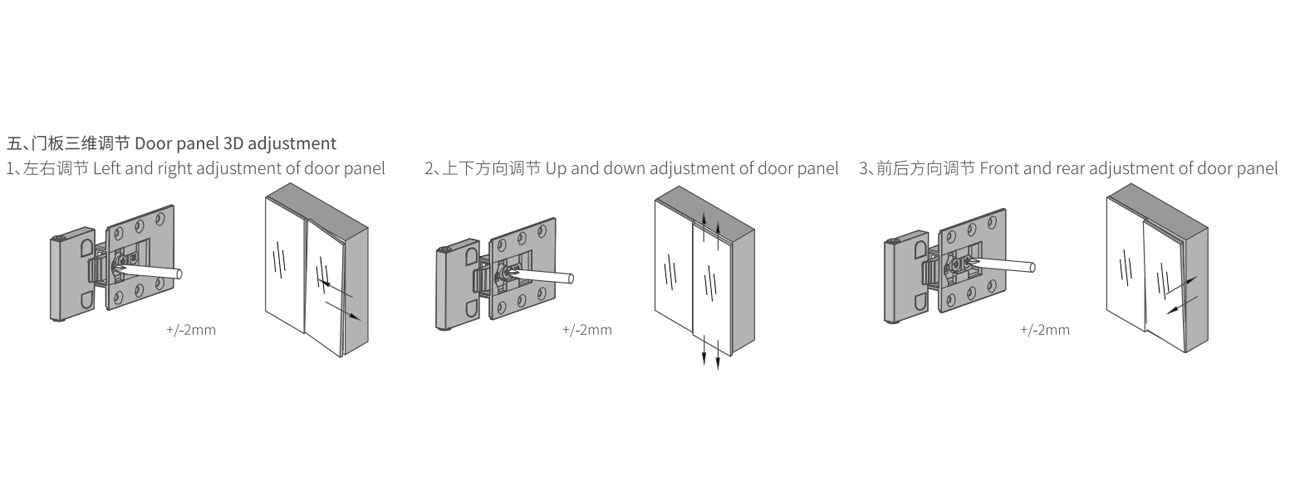

Adjustment Range	Front-Rear+3mm, Up-Down士2.5mm, Left-Right+3mm
Accessories	Hinge R, hinge L, Bracket R(option), Bracket L(option)

Full Overlay 180° Single Axis Needle Hinge 2.0 MK-KY-ZS2.0-180D

Datasheet of Full Overlay 180° Single Axis Needle Hinge 2.0 MK-KY-ZS2.0-180D

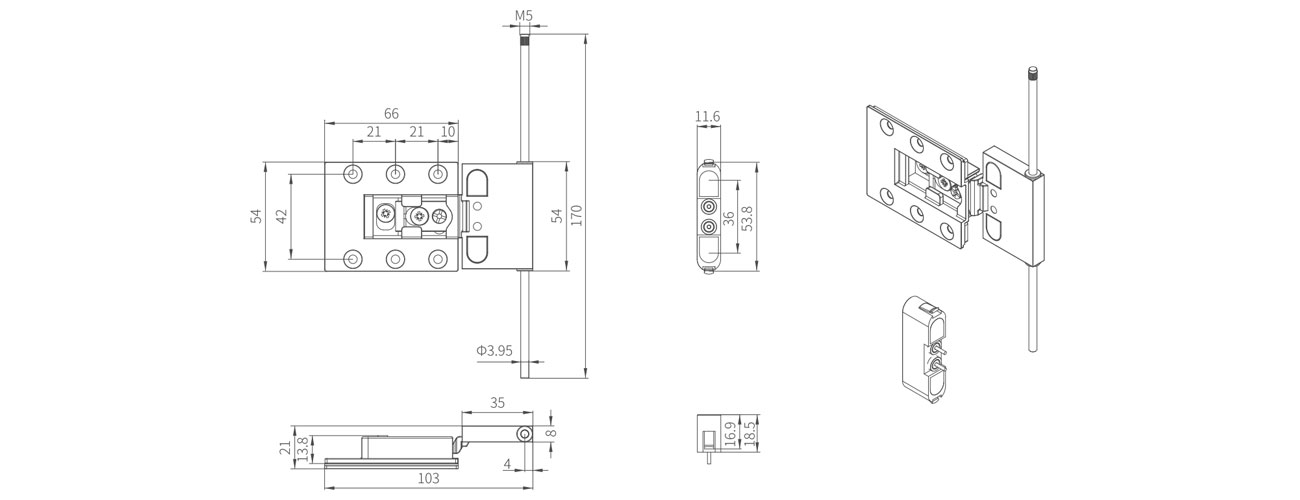

Full Overlay 180° Single Axis Needle Hinge 2.0 MK-KY-ZS2.0-180D Part Drawing
