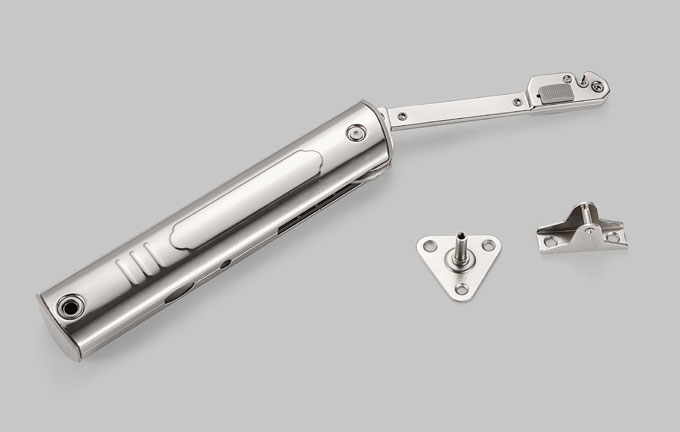

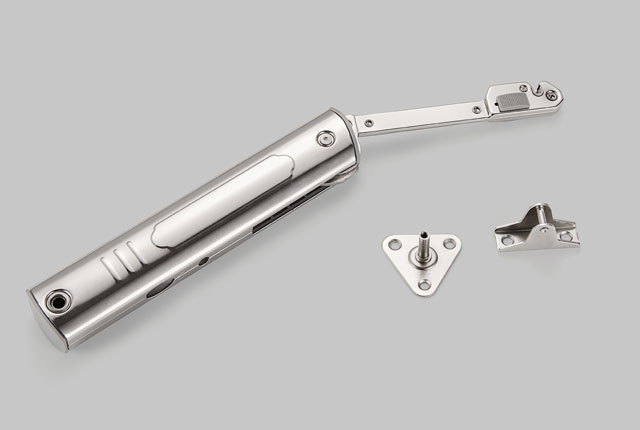

Free stop at any position in opening angle about 30°.
Door can soft close if used with soft hinges.
Load-bearing capacity can be adjusted by turning the inside screw.
| Item number | MK-HL-G317 |
| Material | Iron+Plastic |
| Finish | Nickel plating, Chrome plating, Black |
Usage Suggestion
| Model | Cabinet Height (mm) | Product OTY | Open Angle |
| MK-HL-G317-L-600-1200 | 300-400mm | 1 PCS | 100° |
| MK-HL-G317-M-1050-2025 | 300-450mm | 1 PCS | 100° |
| MK-HL-G317-H-1900-3300 | 380-550mm | 1 PCS | 100° |
Cabinet height: 300-550mm
Front width: 500-1500mm
Cabinet depth should be 200mm at least.
The open angle of the door will be limited by the angle of used hinges.
