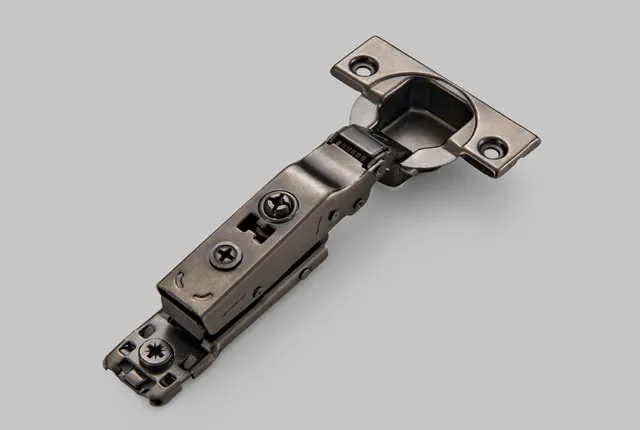

HD In-line Hinge (Full Overlay) MK-HD-QG-YZJ
HD In-line Hinge (Full Overlay) MK-HD-QG-YZJ

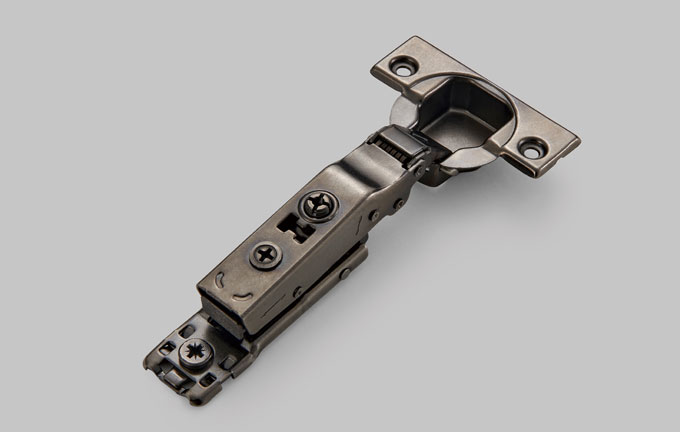

hd in line hinge mk hd qg yzj manufacturers

HD In-line Hinge (Full Overlay) MK-HD-QG-YZJ

MEIKI Cabinet Hanger provides a strong and reliable wall mounting solution for kitchen cabinets and furniture systems. Designed with high load capacity, easy adjustment and secure installation, it ensures stable cabinet hanging performance for modern kitchen applications.
Request A Free Quote

Datasheet of HD In-line Hinge MK-HD-QG-YZJ

Item numberMK-HD-QG-YZJ
Opening Angle110°
Depth of hinge cup11.3mm
Diameter of hinge cup35mm
Drilling distance on door(K)3-7mm
Main materialCold rolled steel
Optional thickness of door plate14-23mm
Finish

Nickel plating, Gun black

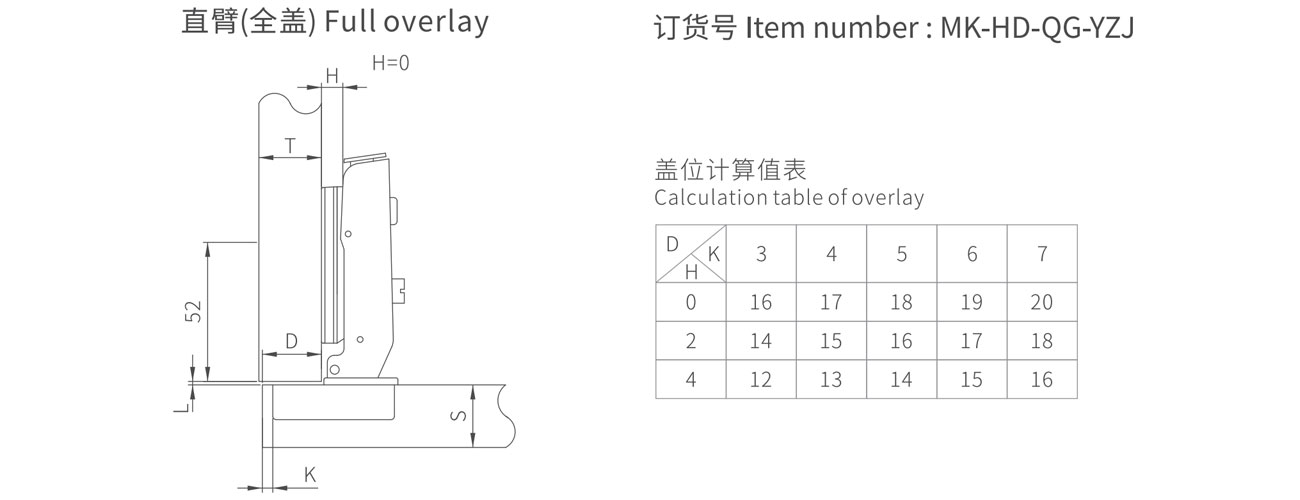

HD In-line Hinge MK-HD-QG-YZJ Part Drawing

HD In-line Hinge MK-HD-QG-YZJ
HD In-line Hinge MK-HD-QG-YZJ
Unlock Custom Furniture Hardware/Fittings Solutions
Unlock Custom Furniture Hardware/Fittings Solutions

Choose our tailored Furniture Hardware & Fitting Solutions to upgrade every corner of your space efficiently and perfectly.

*
*
*
*
*

Related Cabinet Hinges

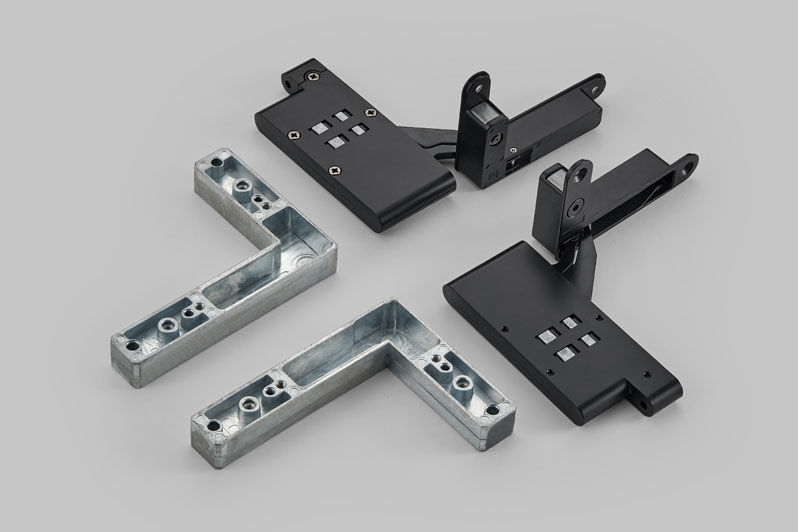

Heavy-weght Hinge (2.0) MK-KY-TDJ2.0-30KG Heavy-weght Hinge (2.0) MK-KY-TDJ2.0-30KG
