Item number	MK-HD-01-NQ-FD3
Open angle	110°
Depth of hinge cup	11.8mm
Diameter of hinge cup	35mm
Drilling distance on door(K)	3-5mm
Range of door thickness	14-23mm
Main material	Cold rolled steel
Finish	Nickel plating

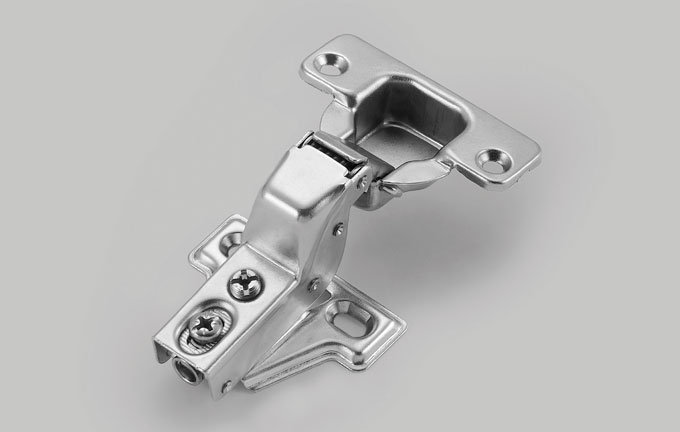

HD 35 Cup Short Arm Soft Closing Hinge MK-HD-01-NQ-FD3

Datasheet of HD 35 Cup Short Arm Soft Closing Hinge MK-HD-01-NQ-FD3

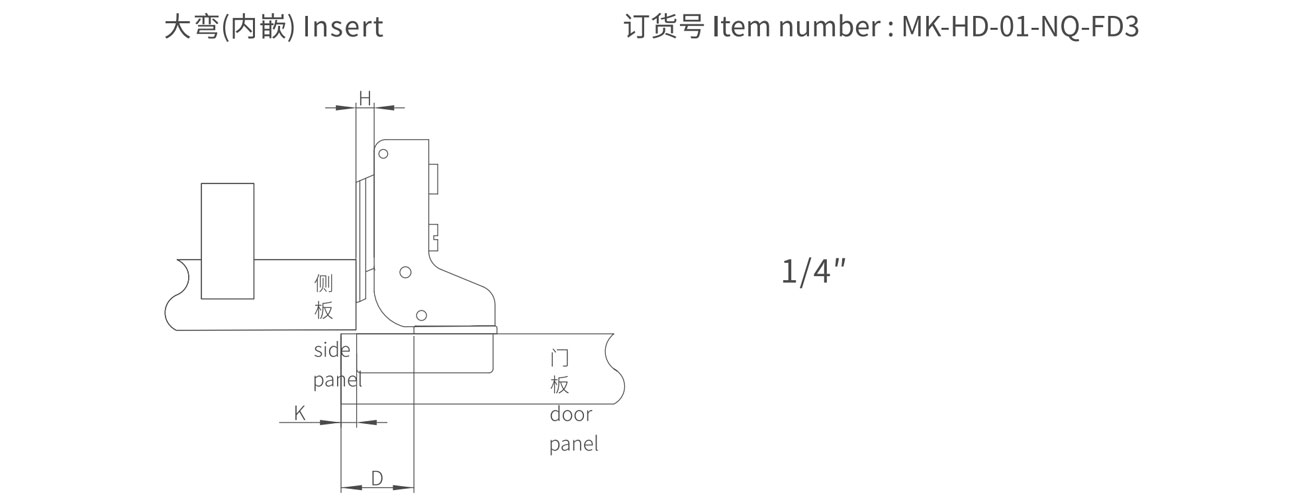

HD 35 Cup Short Arm Soft Closing Hinge MK-HD-01-NQ-FD3 Part Drawing
