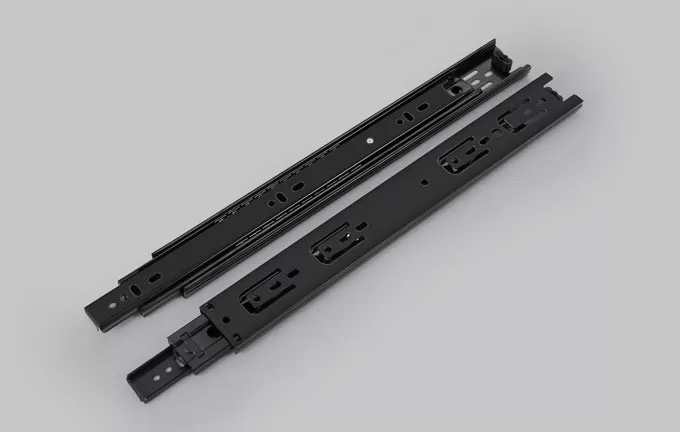

| Full extension clip on three-segment ball bearing slide | |
| Slide width | 43.8mm |
| Loading capacity | 30kg |
| Material | Cold rolled steel |
| Finish | Electrophoresis/electrolysis |

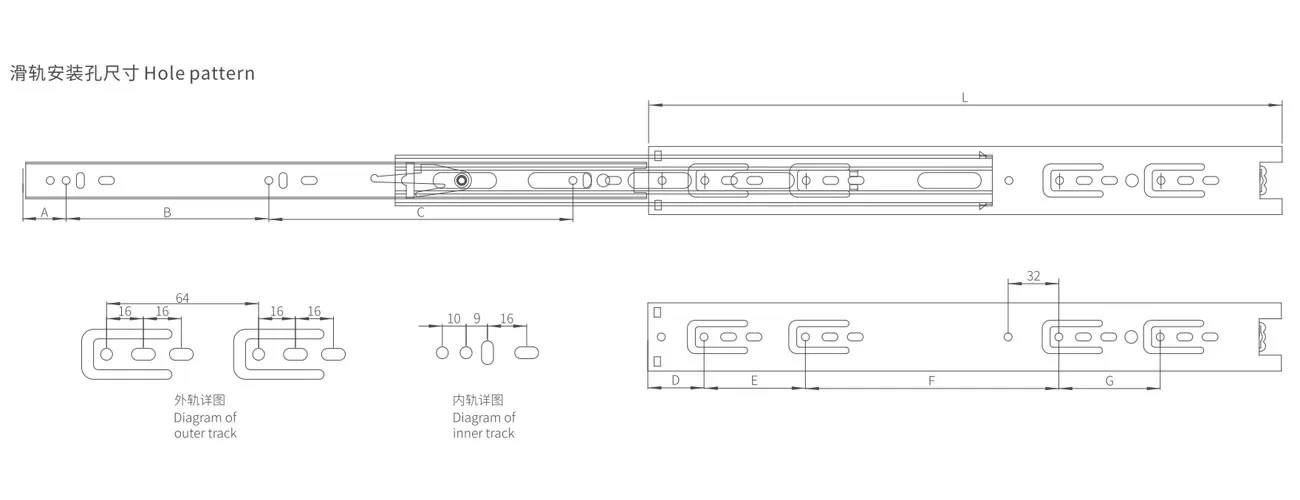

| Product Type | Length(mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) |
| MK-XL4510200 | 200 | 27 | 132 | / | 35.5 | 96 | / | / | 200 |
| MK-XL4510240 | 240 | 27.5 | 160 | / | 35.5 | 64 | 79 | / | 240 |
| MK-XL4510250 | 250 | 27 | 167.5 | / | 35.5 | 64 | 78 | / | 250 |
| MK-XL4510300 | 300 | 27 | 96 | 128 | 35.5 | 64 | 128 | / | 300 |
| MK-XL4510350 | 350 | 27 | 128 | 128 | 35.5 | 64 | 128 | 64 | 350 |
| MK-XL4510400 | 400 | 27 | 128 | 192 | 35.5 | 64 | 160 | 64 | 400 |
| MK-XL4510450 | 450 | 27 | 160 | 192 | 35.5 | 64 | 224 | 64 | 450 |
| MK-XL4510500 | 500 | 27 | 192 | 224 | 35.5 | 64 | 256 | 64 | 500 |
