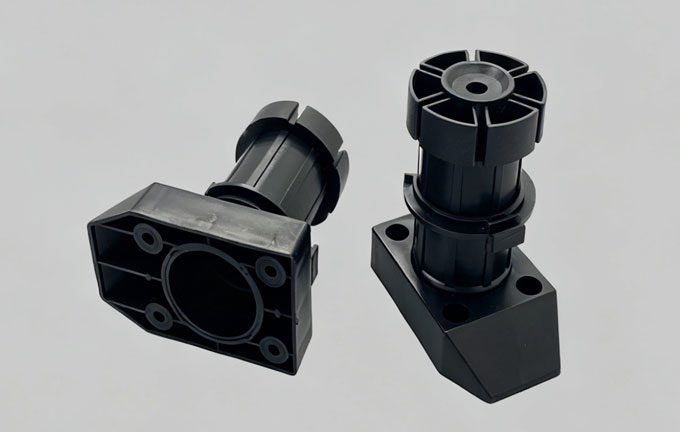

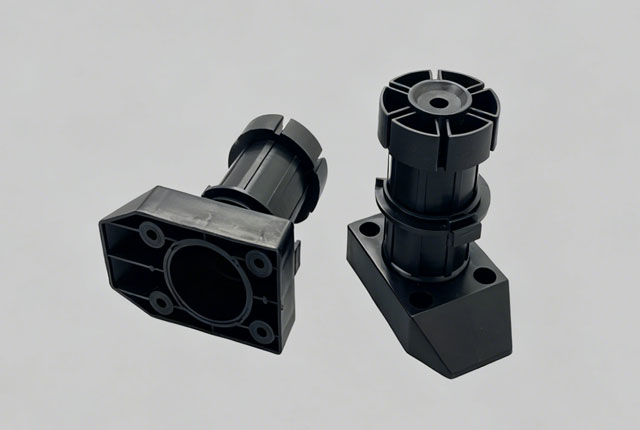

Compensates for uneven flooring. Thick column design ensures strong load support, stability, and wide application.

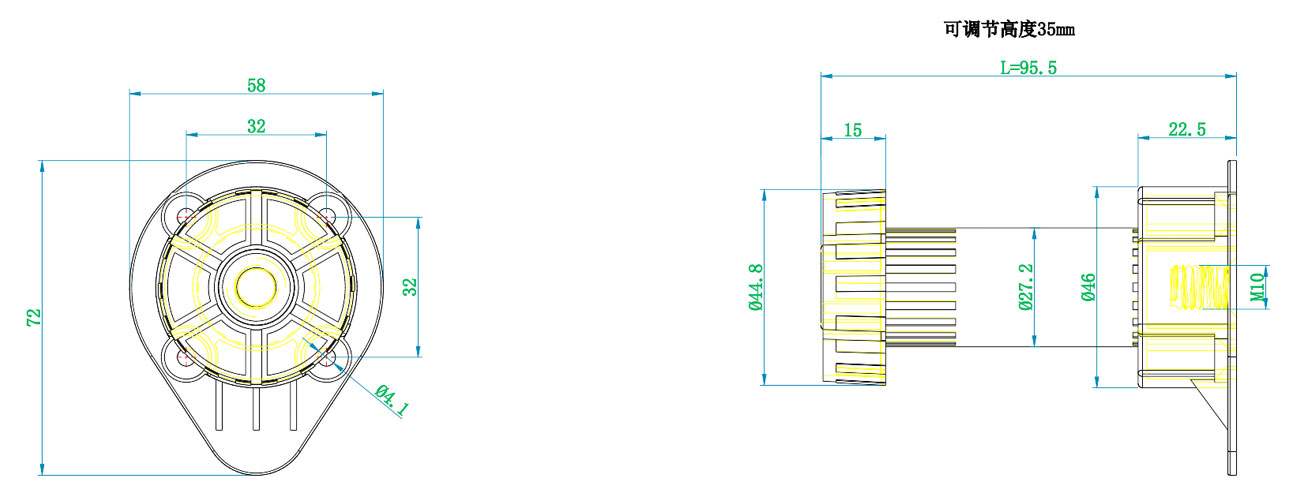

| Parameter | Value | Description |
| Adjustable height range | 96 ~ 130 | Total height adjustment range |
| Minimum height H_min | 96 | Height when fully retracted |
| Maximum height H_max | 130 | Height when fully extended |
| Adjustment travel | 34 | 130 - 96 |
| Base mounting plate size | approx. 67 × 53.6 | Trapezoidal mounting plate (refer to previous adjustable foot style) |
| Number of mounting holes | 4 | Countersunk screw holes |
| Mounting hole center distance | 51 × 33.5 | Horizontal / vertical center distance |
| Main cylinder diameter | Φ40 | Outer diameter of thick foot body |
| Top support disc diameter | Φ40 | Support surface connected to cabinet bottom plate |
| Top center hole | Φ8 | For reinforcement or positioning |
| Side wall thickness | 3 | Plastic body wall thickness |
| Base thickness | 6 | Mounting plate thickness |
Choose our tailored Furniture Hardware & Fitting Solutions to upgrade every corner of your space efficiently and perfectly.
