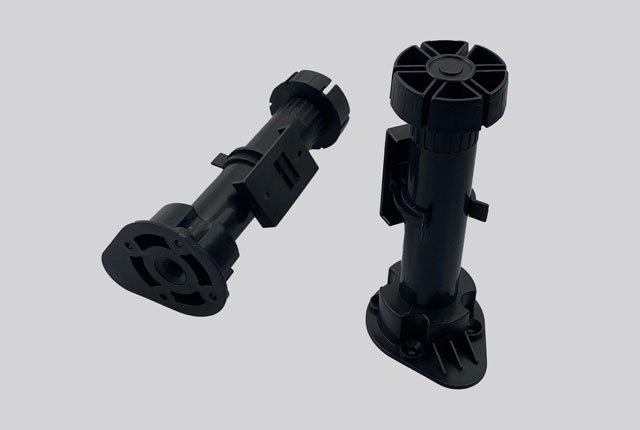

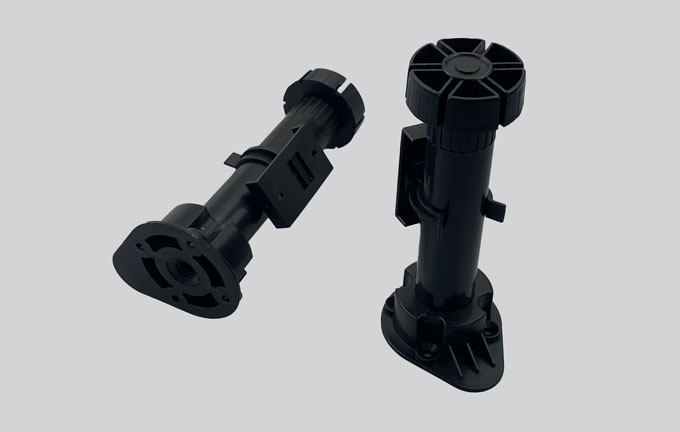

Lightweight. Clip-in installation – no screws needed, high assembly efficiency. Hollow design saves material – cost-effective.
Base Part (Top / Bottom View)
| Measurement Item | Symbol | Unit | Measured Value | Remark |
| Base outer length | L | mm | Longest side of ellipse / triangle | |
| Base outer width | W | mm | Widest side of ellipse / triangle | |
| Base thickness | T1 | mm | Bottom plate thickness | |
| Mounting hole diameter | d1 | mm | Screw hole diameter | |
| Mounting hole center distance | P1 | mm | Distance between two hole centers | |
| Number of mounting holes | n | pcs | Usually 3 | |
| Base-to-cylinder transition fillet | R1 | mm | Optional | |
| Number / size of reinforcement ribs | T2 | mm | Support ribs under the base |
Cylinder Part (Side / Section View)
| Measurement Item | Symbol | Unit | Measured Value | Remark |
| Cylinder outer diameter | D | mm | Outer contour diameter | |
| Cylinder inner diameter | d | mm | Inner hole diameter (including thread) | |
| Cylinder height (fixed section) | H1 | mm | Excluding screw extension | |
| Large clip position height | H2 | mm | For snap‑fit with baseboard | |
| Large clip width | W2 | mm | ||
| Large clip thickness | T3 | mm | ||
| Side ribs / slots on cylinder | m | pcs | Mating structure for clip |
Adjusting Screw and Top (Side / Section View)
| Measurement Item | Symbol | Unit | Measured Value | Remark |
| Screw outer diameter | d_s | mm | Corresponds to thread specification (M8=8mm, M10=10mm) | |
| Thread pitch | P | mm | Standard thread: M8=1.25, M10=1.5 | |
| Top adjusting disc diameter | D_top | mm | Diameter of toothed anti‑slip surface | |
| Adjusting disc thickness | T_top | mm | ||
| Number of adjusting discs | k | pcs | Anti‑slip teeth distributed circumferentially | |
| Minimum screw protrusion | S_min | mm | Exposed length at total height 145mm | |
| Maximum screw protrusion | S_max | mm | Exposed length at total height 165mm |
