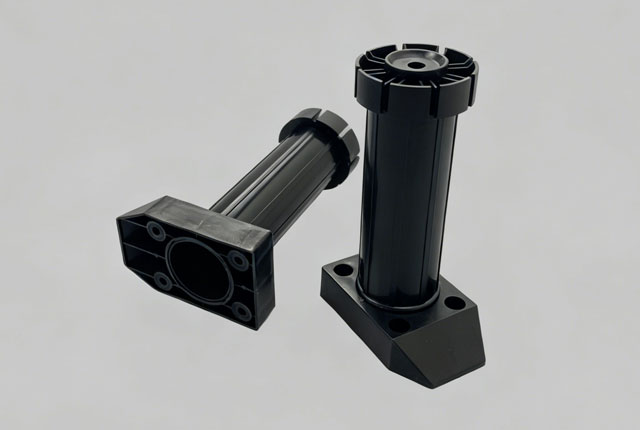

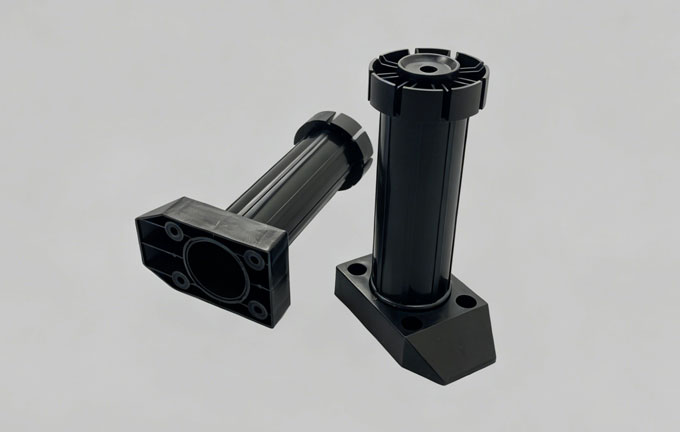

Wide adjustment span, excellent per-leg load capacity. Resists heavy compression and deformation – ideal for heavy furniture and commercial use.
| Parameter | Value | Description |
| Adjustable height range | 145 ~ 210 | Total height adjustment range |
| Minimum height H_min | 145 | Height when fully retracted |
| Maximum height H_max | 210 | Height when fully extended |
| Adjustment travel | 65 | 210 - 145 |
| Base mounting plate size | approx. 67 × 53.6 | Trapezoidal mounting plate (same style as before) |
| Number of mounting holes | 4 | Countersunk screw holes |
| Mounting hole center distance | 51 × 33.5 | Horizontal / vertical center distance |
| Main cylinder diameter | Φ40 | Outer diameter of thick foot body |
| Top support disc diameter | Φ40 | Support surface connected to cabinet bottom plate |
| Top center hole | Φ8 | For reinforcement or positioning |
| Side wall thickness | 3 | Plastic body wall thickness |
| Base thickness | 6 | Mounting plate thickness |
