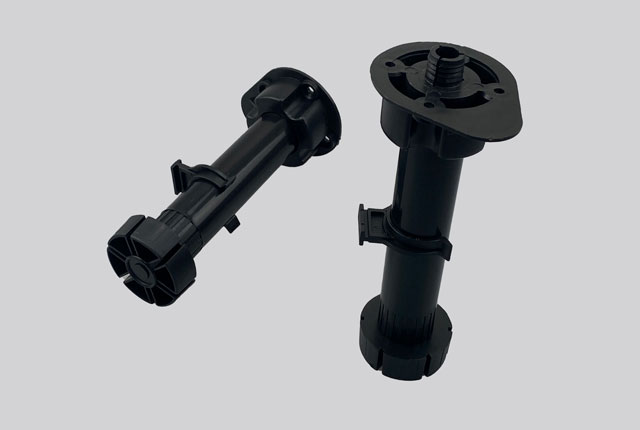

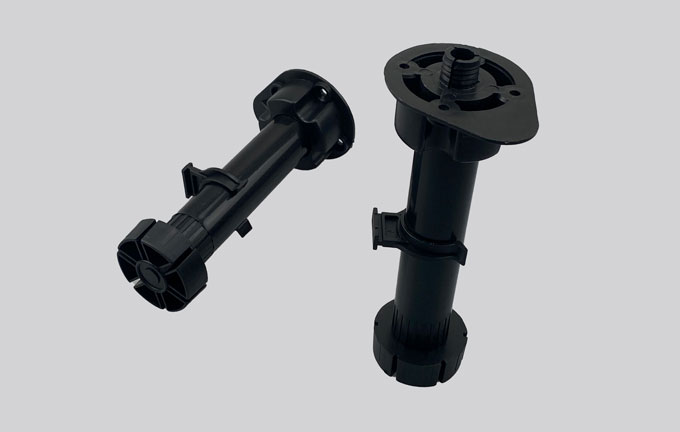

Longer adjustment range. Thicker tube for higher load capacity – suitable for commercial and industrial environments.
| Parameter | Value | Description | |
| Adjustable height range | 145 ~ 175 mm | Minimum to maximum height | |
| Base flange | Maximum outer diameter | approx. 85 mm | Eccentric design |
| Number of mounting holes | 4 | Evenly distributed, Aperture of about 5mm | |
| Center internal thread | M10 | Common specifications, can be adjusted according to actual needs | |
| Main tube | Outer diameter | approx. 40 mm | |
| Wall thickness | approx. 2 mm | ||
| Clip position (distance from base top surface) | approx. 70 mm | ||
| Bottom adjustment knob | Outer diameter | approx. 52 mm | |
| Knob teeth | Anti-skid teeth | For manual rotation | |
| Adjustment travel | 30 mm | Corresponds to height adjustment range | |
